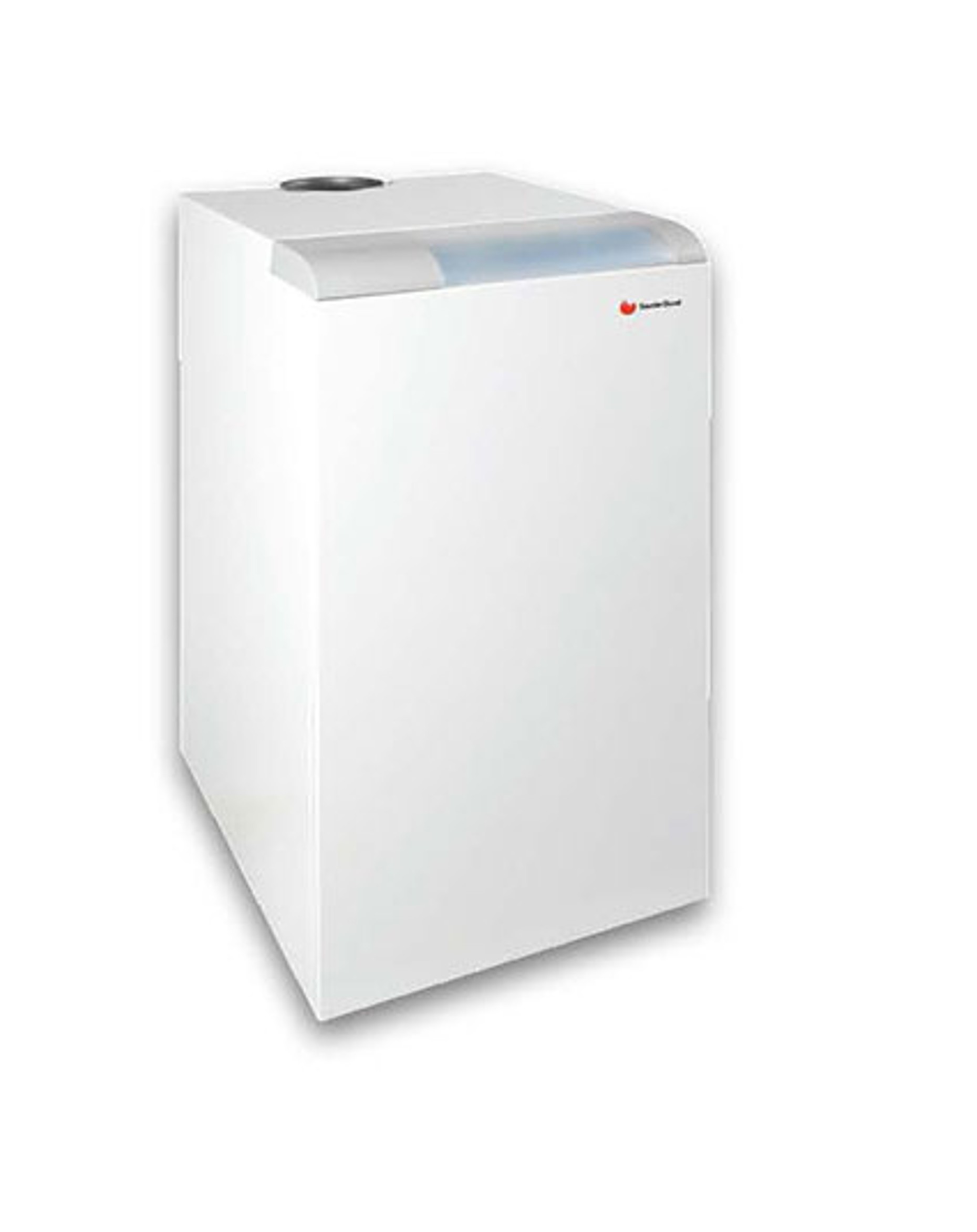

TEKNA 30, 40, 50, 60 PLO
Floor standing boiler
- Ease of use for the end customer
- Ease of installation and maintenance
- A range from 26 to 50 kW
The Tekna PLO is a floor standing, conventional gas boiler that is easy to use, install and maintain.
It is a heating only type device but it can be associated with an external hot water tank.
Its power range meets needs ranging from single-family homes to apartment buildings.
Specifications
Specifications
| Technical data | Units | 30 PLO | 40 PLO | 50 PLO | 60 PLO |
|---|---|---|---|---|---|
| Gas category | II2H3P | II2H3P | II2H3P | II2H3P | |
| Type | B11BS / B44 | B11BS / B44 | B11BS / B44 | B11BS / B44 | |
| Heating | |||||
| Output at 80/60°C | kW | 18,2 to 26 | 24,5 to 35 | 31 to 44,5 | 49,5 |
| Heating flow temperature | °C | 45 to 90 | 45 to 90 | 45 to 90 | 45 to 90 |
| Unit control | 2 steps | 2 steps | 2 steps | step | |
| Water content | L | 11,6 | 14,1 | 16,6 | 19,1 |
| Maximum service pressure | bars | 4 | 4 | 4 | 4 |
| Dimensions (H x W x D) | mm | 880 x 420 x 600 | 880 x 505 x 600 | 880 x 590 x 620 | 880 x 675 x 620 |
| Empty weight | kg | 110 | 130 | 150 | 170 |
| Electrical power | V / Hz | 230 / 50 | 230 / 50 | 230 / 50 | 230 / 50 |
| Maximum electrical consumption (pumps and 3 way valves not included) | W | 20 | 20 | 20 | 20 |
| Electrical protection | IP40 | IP40 | IP40 | IP40 | |
| Heating connection | Inch | 1" | 1" | 1" | 1" |
| Gas connection | Inch | 3/4" | 3/4" | 3/4" | 3/4" |
| Gas | All these appliances are supplied equipped with natural gas only. | ||||
