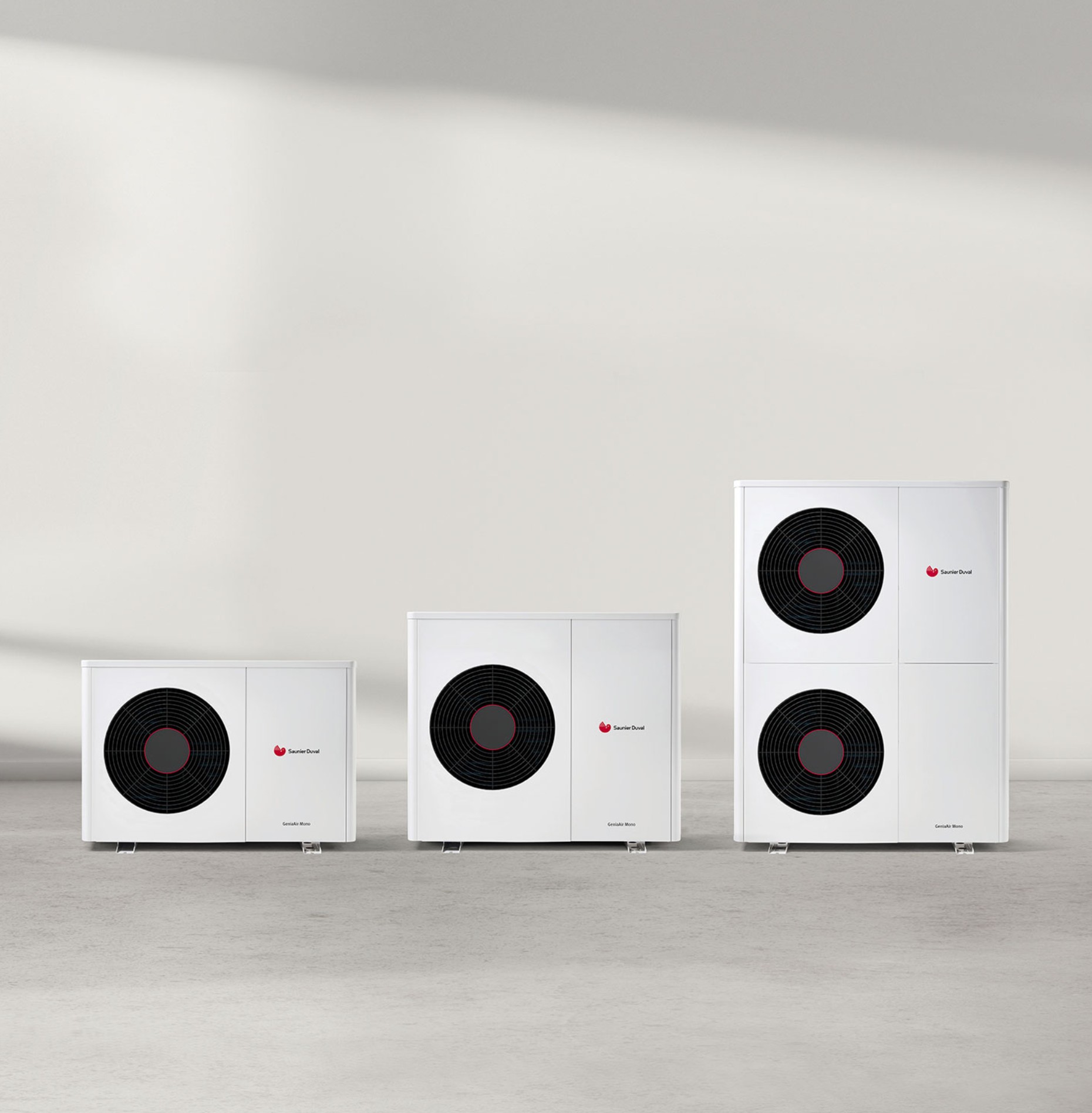

GeniaAir : Air- water heat pump of 5, 8, 11 or 15 kW
Monobloc heat pump
- Monobloc heat pump. No handling of fluids.
- Reversible for heating, DHW or air conditioning
- Ease of installation
- Performance: COP up to 4.7
Simplified installation
No handling of refrigerants
Refrigeration circuit preloaded and tested
Great performance
COP up to 4.7
Erp class A+++
Sustainable solution
Thanks to Inverter technology, the compressor is used just enough.
Reinforced wear resistance, anti-corrosion treated materials
Specifications
Specifications
Units | GeniaAir 5 | GeniaAir 8 | GeniaAir 11 | GeniaAir 15 | |
---|---|---|---|---|---|
GeniaAir | |||||
Flow temperature / HP alone | °C | 55 | 55 | 55 | 55 |
Flow temperature with electric back-up heater | °C | 75 | 75 | 75 | 75 |
COP air 7°C / water 35°C | 4,7 | 4,5 | 4,3 | 4,5 | |
Fluid | R410a | R410a | R410a | R410a | |
Quantity of fluid | kg | 1,8 | 1,95 | 3,5 | 4,4 |
Weiht (empty) | kg | 90 | 106 | 126 | 165 |
Dimensions (H x L x P) | mm | 800 x 980 x 360 | 942 x 1103 x 415 | 942 x 1103 x 415 | 1340 x 1103 x 415 |
GenaiAir + hydraulic tour Geniaset | |||||
Cylinder capacity | L | 190 | 190 | 190 | 190 |
Electric back-up output | kW | 6 | 6 | 6 | 6 |
Expansion vessel capacity | L | 15 | 15 | 15 | 15 |
Energy efficiency | |||||
Class of efficiency in heating | A++ | A+++ | A+ | A++ | |
Class of efficiency in DHW | A | A | A | A | |
