Helioconcept
Helioconcept: pressurized solar solution for all situations (individual or collective)
- Adaptable to all situations: Helioconcept accepts all installation constraints
- Adaptable to new as well as building renovation
- Great flexibility to meet all types of needs (type and number of cylinders, type of sensor and number of fields, etc.)
Pressurized solar system Helioconcept
Helioconcept is a solution for creating a pressurized solar installation in individual or collective housing.
The various components offered make it possible to adapt to needs with great flexibility.
Specifications
Specifications

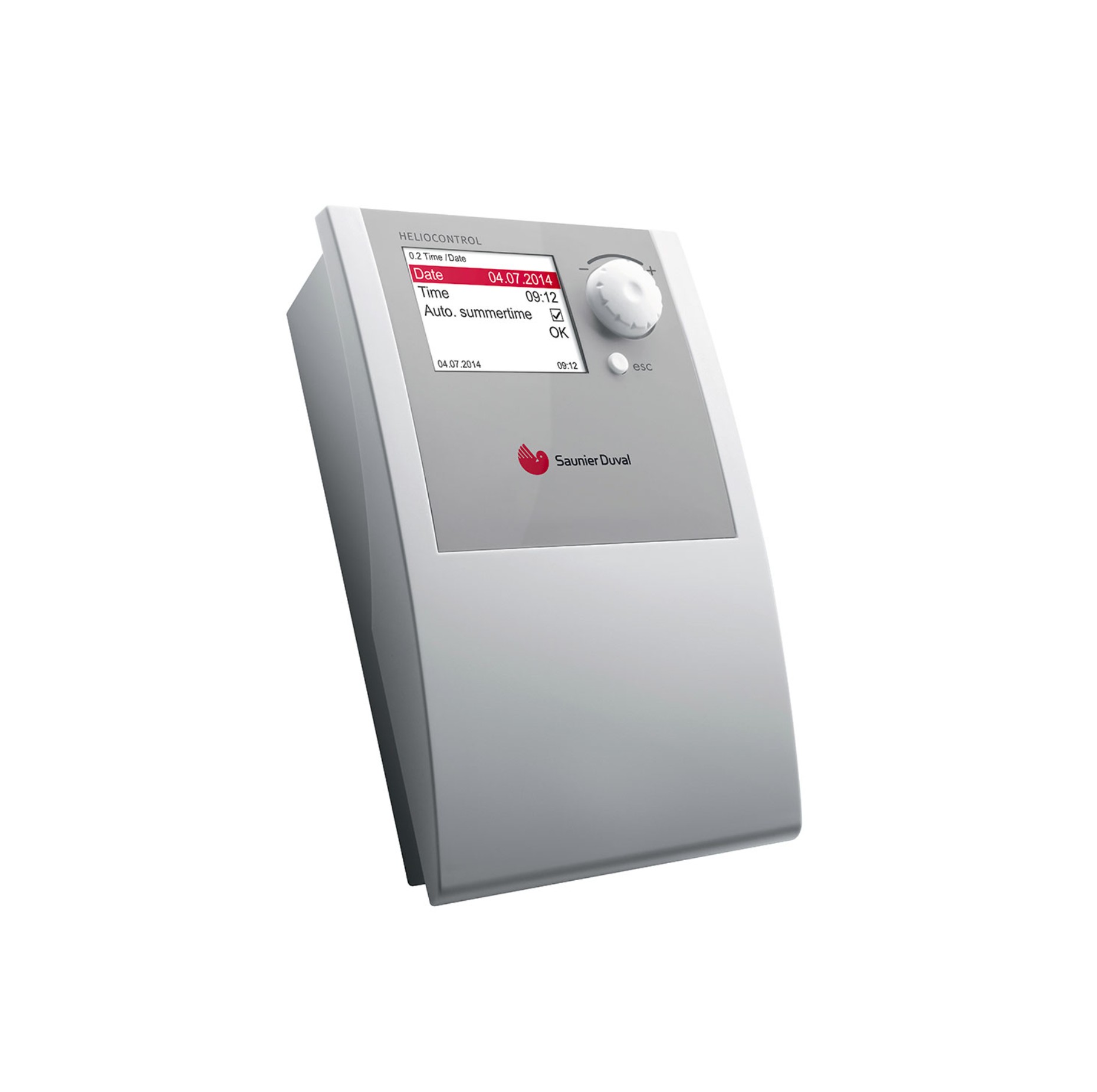

| Heliocontrol (solar controller) | Units | ||
|---|---|---|---|
| Dimensions (H x W x D) | mm | 173 x 115 x 46 | |
| Weight | gr | 370 | |
| Electric supply | V/Hz | 230/50 | |
| Solar station GHS 70 | |||
| Dimensions (H x W x D) | mm | 325 x 245 x 175 | |
| Weight | kg | 6 | |
| Maximum temperature | °C | 130 | |
| Connection | inch | G3/4 | |
| Helioplan collector | SRH 2.3 | SRV 2.3 | |
| Dimensions (H x W x D) | mm | 1233 x 2033 x 80 | 2033 x 1233 x 80 |
| Gross / net surface | m² | 2,51 / 2,35 | 2,51 / 2,35 |
| Weight (empty) | kg | 38 | 38 |
| Capacity | L | 2,16 | 1,85 |
| Stagnation temperature | °C | 195 | 199 |
